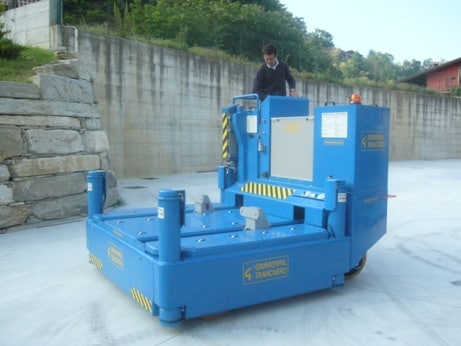

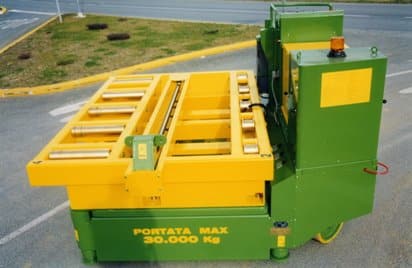

Mobile crane Transidrel 300B
Mold lifting machine with capacity up to 30.000 kg.
The Transidrel 300B is the mold lifting machine designed to lift and carry loads up to 30.000 kg.

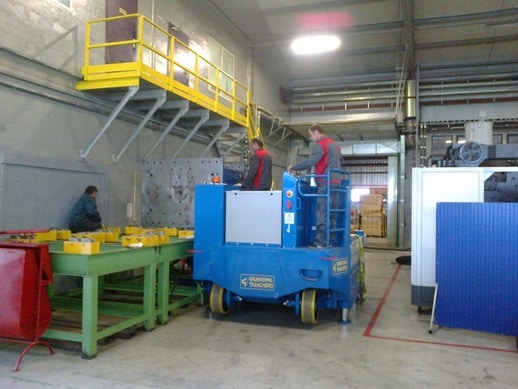

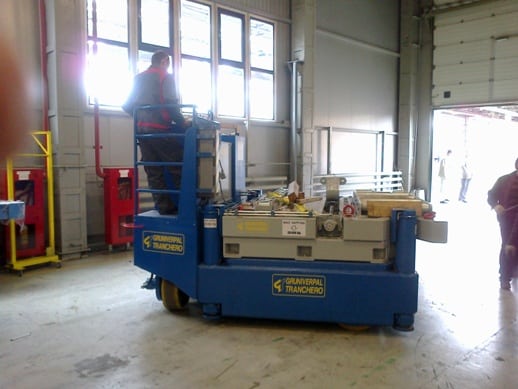

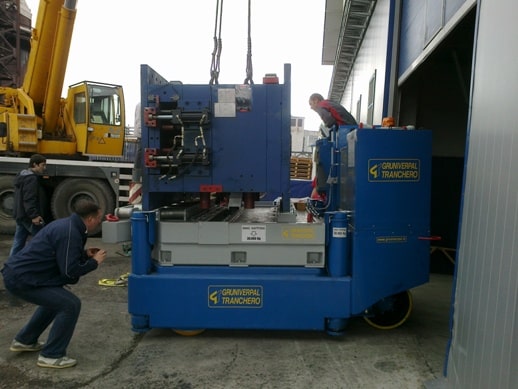

Ideal for use in plastics and mold lifting and industrial maintenance applications.
The small size of the Transidrel 300B crane makes it possible to achieve a high level of performance in small spaces.
Technical features
| Features | Serie Transidrel 300B |
|---|---|
| Maximum load capacity | 30.000 kg |
| Standard min. hook’s height from the ground | 700 mm (table) |
| Standard max. hook’s height from the ground | 950 mm (table) |
| Possibility to extend height up to (option) | 1.900 mm (table) |
| Standard max. telescopic extension | – |
| Capacity at standard max. telescopic extension | 30.000 kg |
| Possibility to extend telecopic extension up to (option) | – |
| Capacity at max.telescopic extension (point 7) | – |
| Rotation (option) | – |
| Wheelbase | 1.905 mm |
| Dimensions- lenght | 2.792 mm |
| Dimensions- width | 2.410 mm |
| Dimensions- height | 2.180 mm |
| Adjustable speed from / to | From 0 to 100 m/min |
| Max. surmountable slope ( unloaded ) | 8% |
| Max. surmountable slope ( loaded ) | 3% |
| Front wheels | 4 x ø 600 x 200 mm |
| Rear driving wheel | 2 x ø 533 x 155 mm |
| Wheels material | Cushion |
| Drive | TWO WHEELS |
| Total weight: | 14.200 kg |
| Electric motor power | 660 Ah / 48V |
| Hardened battery (standard) | 900 Ah / 78V |
| Battery charger on board | 380 /440 V -50/60 Hz |
| Lead acid battery | ● |
| Gel battery | ○ |
| Additional autonomy of battery | ○ |
| Proportional control on board of all mouvements | ● |
| Certification to standard 2006/42 CE | ● |
| Made in accordance (not certified) to standard UL508 A | ● |
| Certification (issued by Third Party) to standard UL508 A | ○ |
| Drive hydraulic unit | ● |
| Automatic braking system | ● |
| Overloading safety system | ● |
| Pressure safety valves on each movements | ● |
| Safety emergency electric devices | ● |
| Winch (lifting capacity on demand) | ○ |
| Wireless remote control (capacity on demand) | ○ |
| User Manual and technical documentation | ● |
| Possibility to do all movements with max. Load | ● |
